Cattle Guards

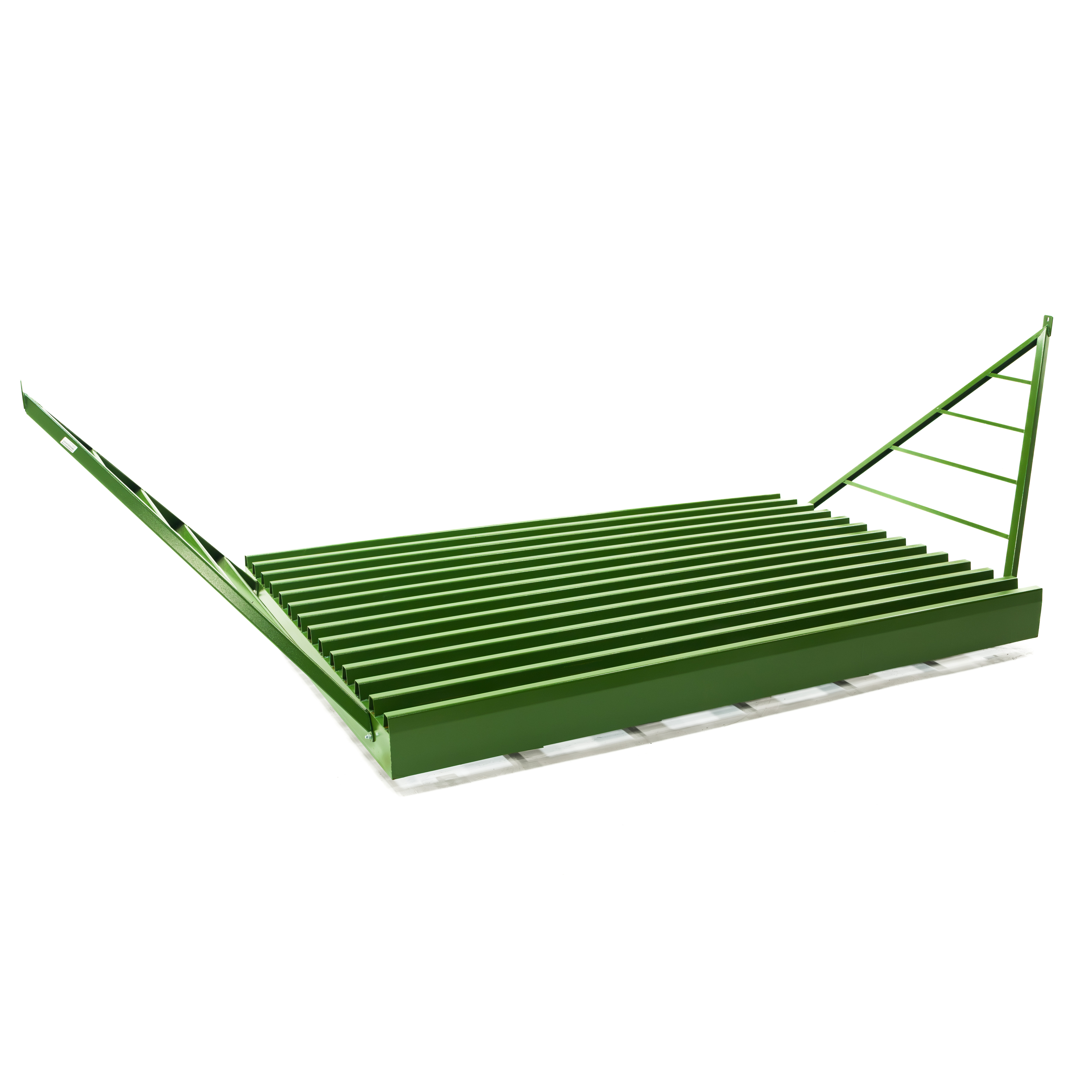

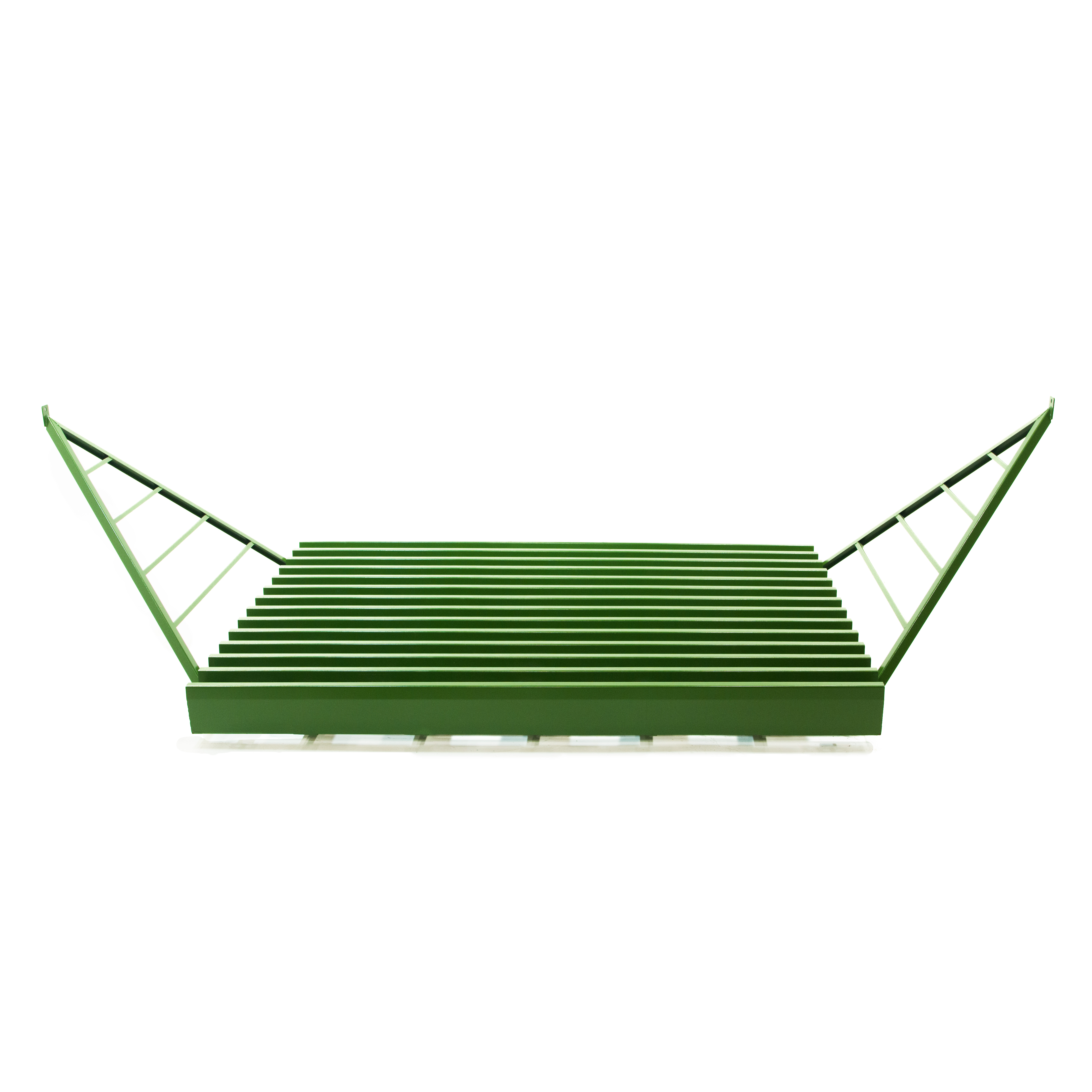

Designed to meet the H-15, H-20, U-54, and U-80 specifications , these cattle guards are used and recommended by State and Federal agencies. These guards are available in lengths of 8 feet, 10 feet, 12 feet, and 14 feet. They can be installed end-to-end to meet your road width requirements. The H-15 and H-20 are also available in a 7-foot 5-inch road length. Other options include a three rail clean out section (except on the U-80), end wings and steel posts. The cattle guards are Powder Coat painted green in a standard order. They can be special ordered in a Powder Coated safety yellow if desired.

The ratings for each category are as follows. A 30% safety factor for impact has been assessed.

  • The H-15 is rated at 12 tons per axle.
  • The H-20 is rated at 16 tons per axle.
  • The U-54 is rated at 25 tons per axle.
  • The U-80 is rated at 30 tons per axle.
Model H-15 (12 tons per axle)
Order Number: Dimensions:
036-15708 H15  7’5″ X 8′
036-15710 H15  7’5″ X 10′
036-15712 H15  7’5″ X 12′
036-15714 H15  7’5″ X 14′
036-15808 H15  8′ X 8′
036-15810 H15  8′ X 10′
036-15812 H15  8′ X 12′
036-15814 H15  8′ X 14′
Model H-15 (with clean out)
Order Number: Dimensions:
036-15708 H15  7’5″ X 8′
036-15710 H15  7’5″ X 10′
036-15712 H15  7’5″ X 12′
036-15714 H15  7’5″ X 14′
036-15808 H15  8′ X 8′
036-15810 H15  8′ X 10′
036-15812 H15  8′ X 12′
036-15814 H15  8′ X 14′
Model H-20 (16 tons per axle)
Order Number: Dimensions:
036-20708 H20  7’5″ X 8′
036-20710 H20  7’5″ X 10′
036-20712 H20  7’5″ X 12′
036-20714 H20  7’5″ X 14′
036-20808 H20  8′ X 8′
036-20810 H20  8′ X 10′
036-20812 H20  8′ X 12′
036-20814 H20  8′ X 14′
Model H-20 (with clean out)
Order Number: Dimensions:
037-20708 H20  7’5″ X 8′
037-20710 H20  7’5″ X 10′
037-20712 H20  7’5″ X 12′
037-20714 H20  7’5″ X 14′
037-20808 H20  8′ X 8′
037-20810 H20  8′ X 10′
037-20812 H20  8′ X 12′
037-20814 H20  8′ X 14′
Model U-54 (25 tons per axle)
Order Number: Dimensions:
036-54808 U54  8′ X 8′
036-54810 U54  8′ X 10′
036-54812 U54  8′ X 12′
036-54814 U54  8′ X 14′
Model U-54 (with clean out)
Order Number: Dimensions:
037-54808 U54  8′ X 8′
037-54810 U54  8′ X 10′
037-54812 U54  8′ X 12′
037-54814 U54  8′ X 14′
Model U-80 (30 tons per axle)
Order Number: Dimensions:
036-80808 U80  8′ X 8′
036-80810 U80  8′ X 10′
036-80812 U80  8′ X 12′
036-80814 U80  8′ X 14′

Ready to Purchase?

Powder River products are available through Authorized Dealers. Use our Find A Dealer page to find a dealer near you!
