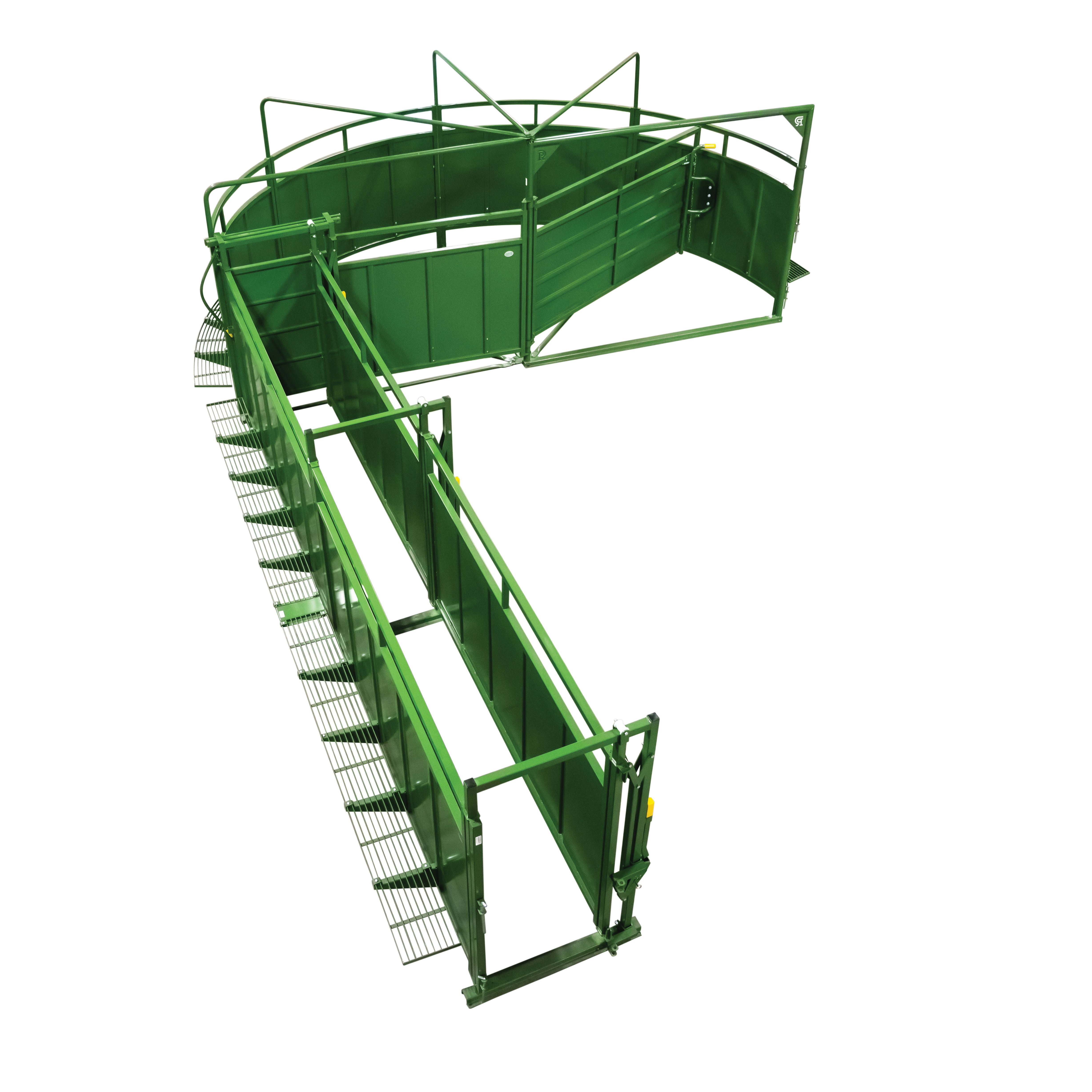

2500 Series Working Systems

STANDARD PACKAGE INCLUDES:

20-FOOT ALLEY (2-10’ SECTIONS)

 10-FOOT SWEEP TUB

INCLUDED ALLEY ROLL GATE

FEATURES:

• Included Catwalk Makes for Easy Handling Along Any Point
• Easy Set up - Pin Together Designs
• Crowd Gate Includes Spring Loaded Latch
• Fully Sheeted Tub
• Fully Sheeted Alley With Half Sheeted Option
• Top & Bottom Tub Bracing
• Allows for Left-Hand & Right-Hand Set-up
• Available in a Side-Exit Configuration
• Easily Adjustable Alley Width
• Available with a 180˚ or 90˚Sweep Tub
• Reversible Sweep Gate
• 72” High Panels When Set Up
• Frame: 2” Square Tubing
• 14-gauge Sheeting on Tub
• 14-gauge Sheeting on Alley
• Each Alley Section Measures 10’
• Curved Alley Sections Available
• All Powder River chutes and headgates are compatible with this system
• The 2500 can be highly customizable

PRODUCT NUMBERS:

• Fully Sheeted Tub & Alley Package

  PRODUCT No. 018-00000



• 2500 1/2 SHEETED STRAIGHT ALLEY

  Product No. 018-00100

  For further customization, the 2500 Straight Alley is also available in a half-sheeted option.




• 2500 CURVED ALLEY

  Fully Sheeted: 018-50300

  Half Sheeted: 018-50827

  Adjustable from 18” to 29” with 10-foot sections, handles are conveniently positioned for easy adjustment from the catwalk.




• 2500 DIVERSION ALLEY

  Product no. 018-00120

  Simplifies directing cattle down different paths & enhances your system by enabling access to a loading ramp, calf table, or other equipment.

 ***For adapter questions and help determining compatibility with your system, please call us at 1-800-453-5318.

2500 Tub Panels

• Sheeting Measurement....................................25” x 100”
• Sheeting Gauge...............................................12-GA Steel
• Frame...............................................1.5” Sq Tube .078 wall
• Height....................................................................................72”
• Inside Radius..............................................................119.25”
• Outside Radius...........................................................119.75”

2500 Alley Bow

• Adjustability.....................................................18.5” - 30.75”
• Frame............................................................2” Square Tube
• Frame Gauge....................................................13-GA Steel
• Height.................................................................................83.5”
• Width...................................................................................47.5”



SUGGESTED ADD-ONS FOR THE 2500 system:

• 2500 PREG GATE
  PRODUCT NO. 018-50600
  The 2500 Preg Gate is a must for the safety and convenience of ranchers, handlers, and veterinary professionals during the pregnancy checking process and they can be entered from the right or left side.


• 2500 ALLEY ROLL GATE
  PRODUCT NO. 018-52080
  Ideal for closing off your alley. It can be opened & closed from either side and is double-sheeted with 12-gauge sheeting. Weight* 222 lbs. 81 ⅛” x 60” overall. Gate dimensions: 32 ¾ x 70 ¾”.


• 2500 CLASSIC TUB
  Full Sweep Tub: 0118-50115
  3/4 Sweep Tub: 018-50150
  This tub is 72 inches high and comes with a catwalk. It features a single reversible sweep gate. When ordering, specify a right-hand or left-hand sweep. It is also available with a 90° tub.


• 2500 DIVERSION ALLEY
  PRODUCT NO. 018-00120
  The Diversion Alley allows you to direct cattle down separate alleyways with ease. It also makes your system more useful as it allows you to set up different equipment or run to a loading ramp.


• 2500 CURVED ALLEY
  Fully Sheeted: 018-50300 - PICTURED
  Half Sheeted: 018-50827
  Customize your alley with the 2500 Curved Alley. It is fully adjustable from 18” to 29" and comes in 10-foot add sections.


• 2500 NO BACK
  PRODUCT NO. 018-00225
  Keeps cattle from backing up in the alley. The No Back is adjustable to accommodate all sizes of cattle and includes a spring that softens the fall of the No Back. Weight* 42 LBS. (FOR USE ONLY ON THE 2500)
