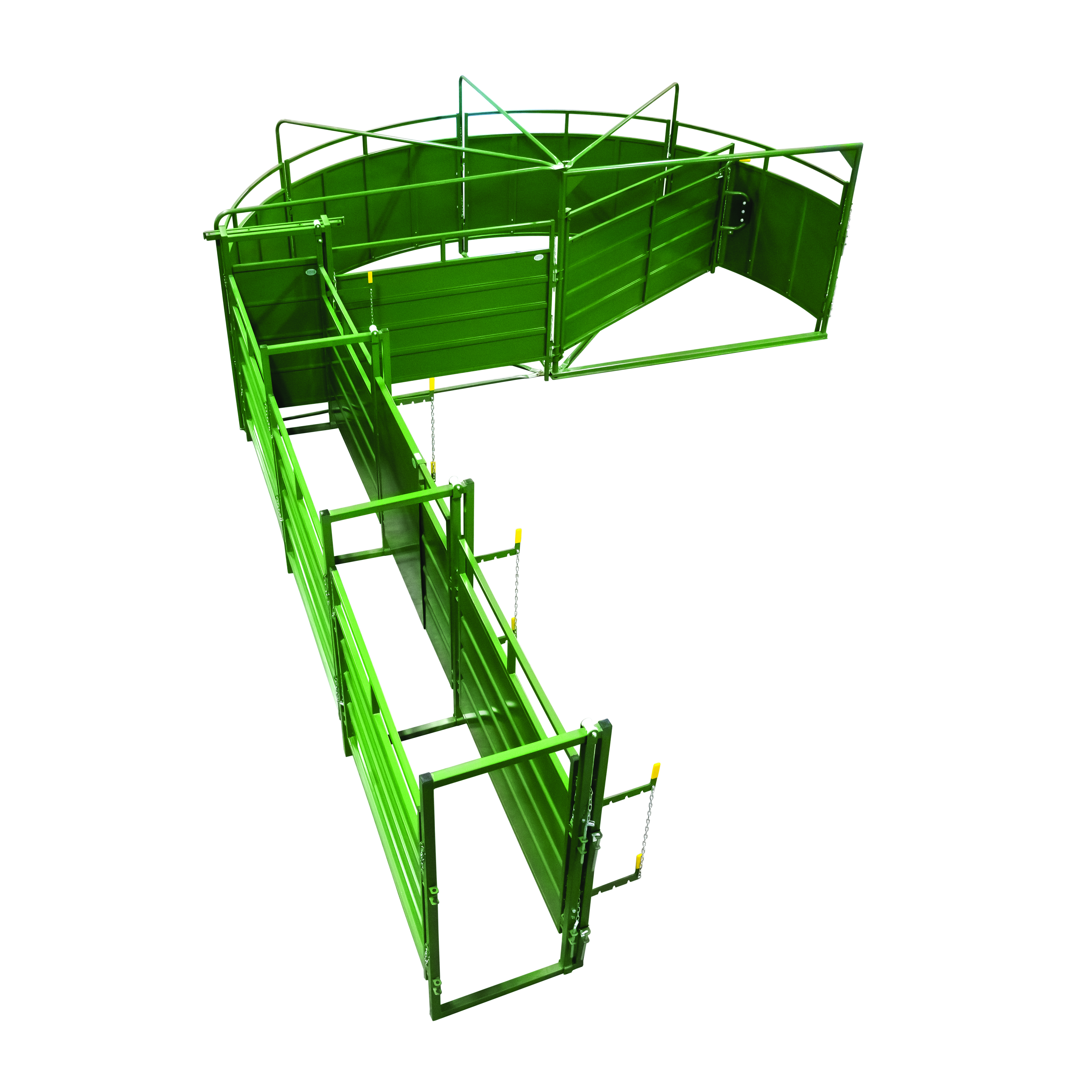

2100 Series Working Systems

STANDARD PACKAGE INCLUDES:

20-FOOT ALLEY (3-6’ SECTIONS)

10-FOOT SWEEP TUB

INCLUDED ALLEY ROLL GATE

FEATURES:

• Easy Set up - Pin Together Designs
• Crowd Gate Includes Spring Loaded Latch
• Fully Sheeted Tub
• Fully Sheeted Alley with Half Sheeted and Open Rail Options
• Top & Bottom Tub Bracing
• Quickly Remove Alley Panels for Easy Access to Animal
• Allows for Left-Hand, Right-Hand, & Center Feed Set-up
• Adjustable Alley Width
• Available in a Side-Exit Configuration
• Available with a 180˚ or 90˚Sweep Tub
• Reversible Sweep Gate
• 67” High Panels When Set Up
• Frame: 2” Square Tubing
• 14-gauge Sheeting on Tub
• 16-gauge Sheeting on Alley
• Each Alley Section Measures 6’
• Adjustable Alley Panel Allows Alley to be Angled
• All Powder River chutes and headgates are compatible with this system
• The 2100 can be highly customizable



PRODUCT NUMBER: 017-00005- (2100 Series Tub & Alley S/E)

PRODUCT NUMBER: 017-00000- (Fully Sheeted Tub & Alley Package)

PRODUCT NUMBER: 017-00051- (Open Rail Tub)

PRODUCT NUMBER: 017-00058- (Open Rail Alley)

PRODUCT NUMBER: 017-00057-(Half Sheeted Alley)

PRODUCT NUMBER: 017-00038- (Half/Fully Sheeted Combo Alley)

***For adapter questions and help determining compatibility with your system, please call us at 1-800-453-5318.

Tub Radius............................................................................10’

Tub Panel Height.............................................................67”

Alley Panel Height..........................................................67”

Alley Width............................................................18.5”- 29”

Overall Length.............................................................30’7”

Inside Max Height...................................................75.75”

Tub Sheeting.......................................................14-gauge

Alley Sheeting....................................................16-gauge

SUGGESTED ADD-ONS FOR THE 2100 system:

• 2100 6’ ALLEY ADD SECTION
  FULLY SHEETED: 017-00075
  HALF SHEETED: 017-00090
  OPEN BAR: 017-00085
  A great way to add on to an existing alley, build a secondary alley, or replace an alley section. Made with 1.5” 14-gauge square tubing & 16-gauge sheeting.


• 2100 ADJUSTABLE PANEL
  PRODUCT NO. 017-00070
  The 2100 adjustable panel lets you customize the alley angle to fit your space & specific needs.


• PREGNANCY TEST GATE
  PRODUCT NO. 004-00040
  Protect yourself with Pregnancy Testing Gates. A positive single-bar spring-loaded latch locks off the alley, forming a protected workspace. Preg Gates connect to any Powder River Chute and can be entered from the right or left side.


• ALLEY ROLL GATE
  PRODUCT NO. 028-00024
  Can be placed virtually anywhere. Use it to separate animals in the alley, slow movement, keep them calm by limiting their vision, etc. It is a fixed width and requires an Adjustable Alley Bow addition to be adjustable.


•  2100 ALLEY INTEGRATED ROLL GATE
  PRODUCT NO. 017-00165
  Features an adjustable width, integrating the adjustable Alley Bow and Roll Gate into a single unit, eliminating the need for additional parts. It can be used wherever a 2100 Alley Bow is applicable, making it ideal for controlling traffic flow in the alley & through the tub. The gate has a 2” square tube frame.


• 2100 DIVERSION ALLEY PKG
  PRODUCT NO. 017-00065
  Allows you to direct cattle down separate alleyways with ease. It also makes your system more useful as it allows you to set up different equipment or run to a loading ramp, loading alley, or calf table.

• 2100 NO BACK
  PRODUCT NO. 017-00150
  Prevents cattle from backing up in the alley. Its simple design makes it less obtrusive and easy to install, connecting directly to Alley Bows. A top rubber pad helps eliminate noise as cattle pass under it.
